项目 Project |
规格 Specifications |
|
|
型号 Model |

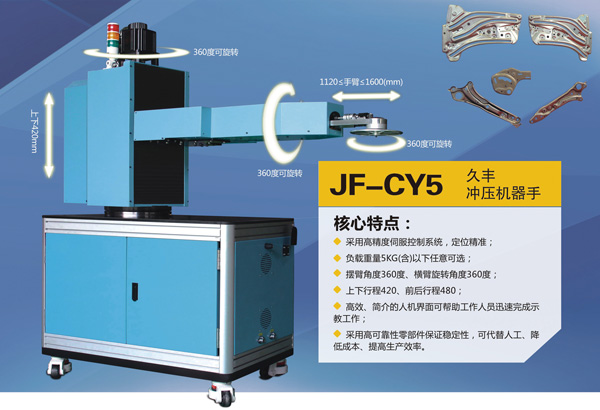

JF-CY5 |
|
|
驱动方式 Driving mode |
伺服 Servo |
|
|
重复定位精度 Repeat positioning accuracy |
±0.1mm |
|
|
自由度 Freedom |
5 |
|
|
手腕部可搬运重量 Wrist can carry weight |
5-10kg |
|
|
可达半径 Reach radius |
1600mm |
|
|
节拍 Rhythm |
500-1000次/小时500-1000times per hour |
|
|
本体重量 Body weight |
500kg |
|
|
安装方式 Installation method |
地面安装 Ground installation |
|
|
动作范围 |
J1 |
±360° |
|
J2 |
上下420mm |
|
|
J3 |
±180 |
|
|
J4 |
前后480mm |
|
|
J5 |
±360 |
|
|
最高速度 |
J1 |
180°/S |
|
J2 |
1000mm/S |
|
|
J3 |
540°/S |
|
|
J4 |
1000mm/S |
|
|
J5 |
450°/S |
|
